MAX 200 is designed to carry and power limited IT resources for a normal shift. Batteries can be recharged overnight by connecting the charger to a 230 V AC power outlet.

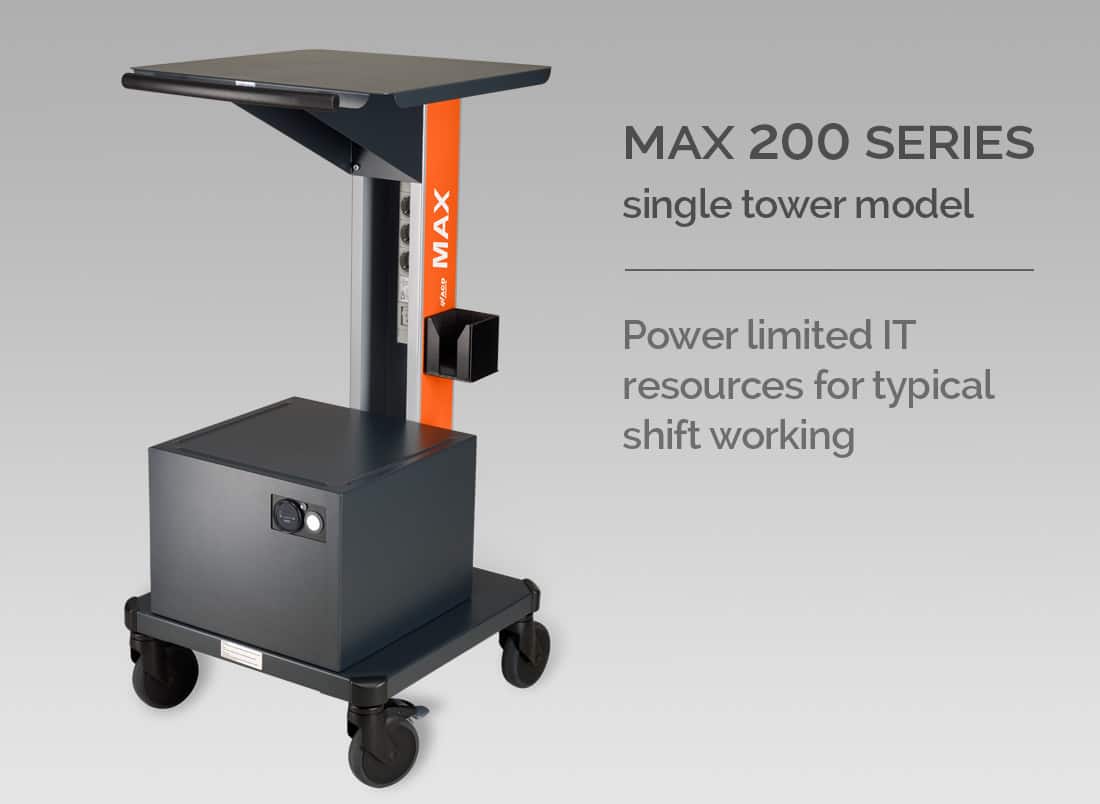

MAX 200 SERIES Single Tower Model - Power limited IT resources for typical shift working

Basic Structure:

  • Single tower with four castors (two with locking brakes)
  • Easy to manoeuvre thanks to ergonomic handle and large castors
  • Very stable due to corner castors and low centre of gravity
  • Dimensions: H1135 x W550 x D592mm
  • Weight – approximately 80kg (without accessories)
  • Operating temperature 0˚C to +40˚C


  • Fixed tabletop – dimensions – W520 x D510mm
  • On-board charger, 9 A
  • 2x 12 V/50Ah lead acid gel batteries (maintenance-free)
  • 24 V DC connector including plug
  • Battery charge indicator displays battery capacity with acoustic and optical warning signal on reaching final discharge voltage with automatic stop (incl. deep discharge protection)
  • 5-way power outlet (UK 3 pin) with residual-current circuit breaker (RCD)

Power configurations available:

  • MAX 200 with inverter 230 V AC/180VA
  • MAX 200 OWR without inverter


  • MAX can be equipped with an ACD MFT 10″, 12″ or 15″ rugged Vehicle Mount Terminal


  • MAX 200 is limited to: Scanner/Pen/Cup holder, Monitor support (for ACD MFT Terminal) and Magnetic Waste Box (10 litre) optional accessories. Our sales team will be happy to take your call to assist you with a personalised configuration – 01425 489 234
