MAX BWS-R series

MAX BWS-R series

< Back to product page

For multi-shift, 24/7 or scanning/printing intensive operations, MAX BWS-R series is used with the ACD MAX Power Station enabling rapid and efficient battery changeover. Batteries can also be recharged by connecting the charger to a 230 V AC power outlet.

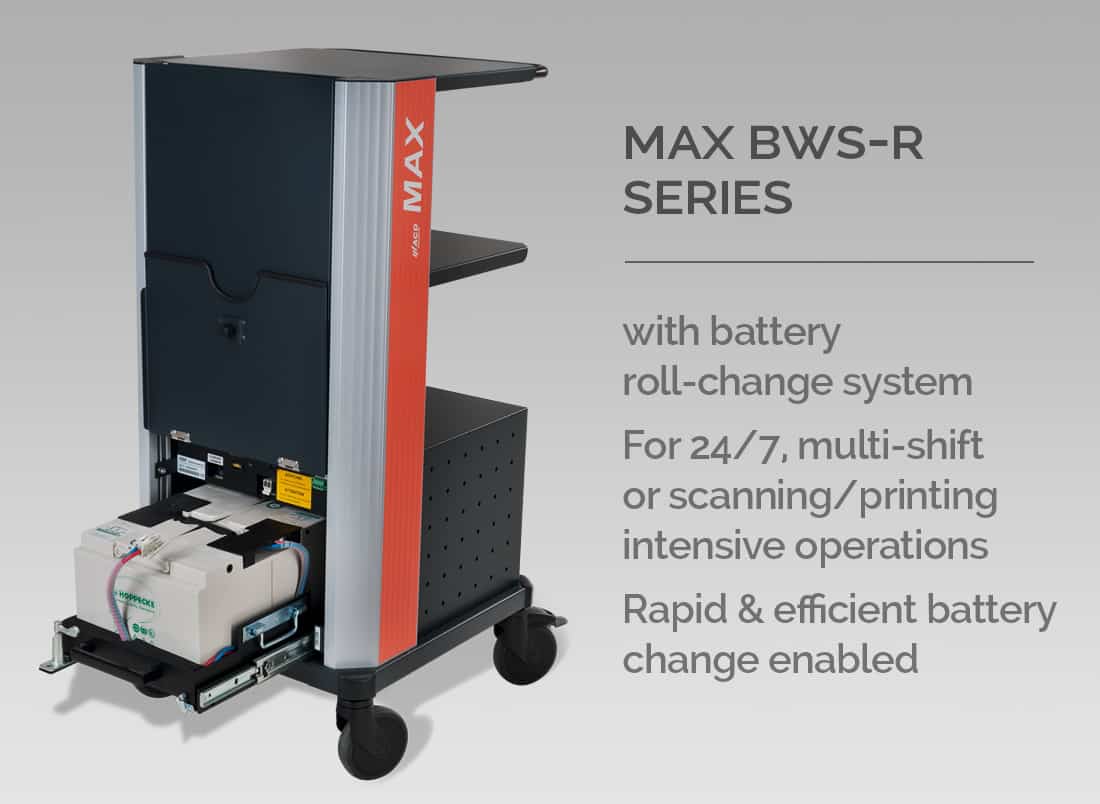

MAX BWS-R SERIES - with battery roll-change system. For 24/7 multi-shift or scanning/printing intensive operations. Rapid & efficient battery change enabled

Basic Structure:

  • Aluminium base frame with four castors (two with locking brakes)
  • Adjustable work height, standard 1050 mm (DIN 4549)
  • Easy to manoeuvre thanks to ergonomic handle and large castors
  • Very stable due to corner castors and low centre of gravity
  • Dimensions: H1130 x W550 x D580mm
  • Weight – approximately 113kg (without accessories)
  • Operating temperature 0˚C to +40˚C


  • Tabletop: W500 x D440mm, desk height adjustable
  • On-board charger, 9 A
  • Standard rear wall: rear wall with document pocket
  • 2x 12 V/60Ah (maintenance-free) lead acid gel batteries
  • Battery roll change system for MAX Power Station
  • 24 V DC connector including connector plug
  • Battery charge indicator displays battery capacity with acoustic and optical warning signal on reaching final discharge voltage with automatic stop (incl. deep discharge protection)
  • 5-way power outlet (UK 3 pin) with residual-current circuit breaker (RCD)

Power configurations available:

  • MAX BWS-R 300 with on-board inverter 230 V AC/350 VA
  • MAX BWS-R 750 with on-board inverter 230 V AC/800 VA
  • MAX BWS-R 1200 with on-board inverter 230 V AC/1200 VA

Other model configurations also available:

  • MAX BWS-R-OWR: MAX BWS-R without inverter


MAX Power Station

Max Power Station

For use with all MAX BWS-R units. Changing and charger station for two batteries with roll system for rapid battery change. Includes:
  • Battery changing unit
  • 24 V/10 A charger
  • 2x 12 V/60 Ah batteries
