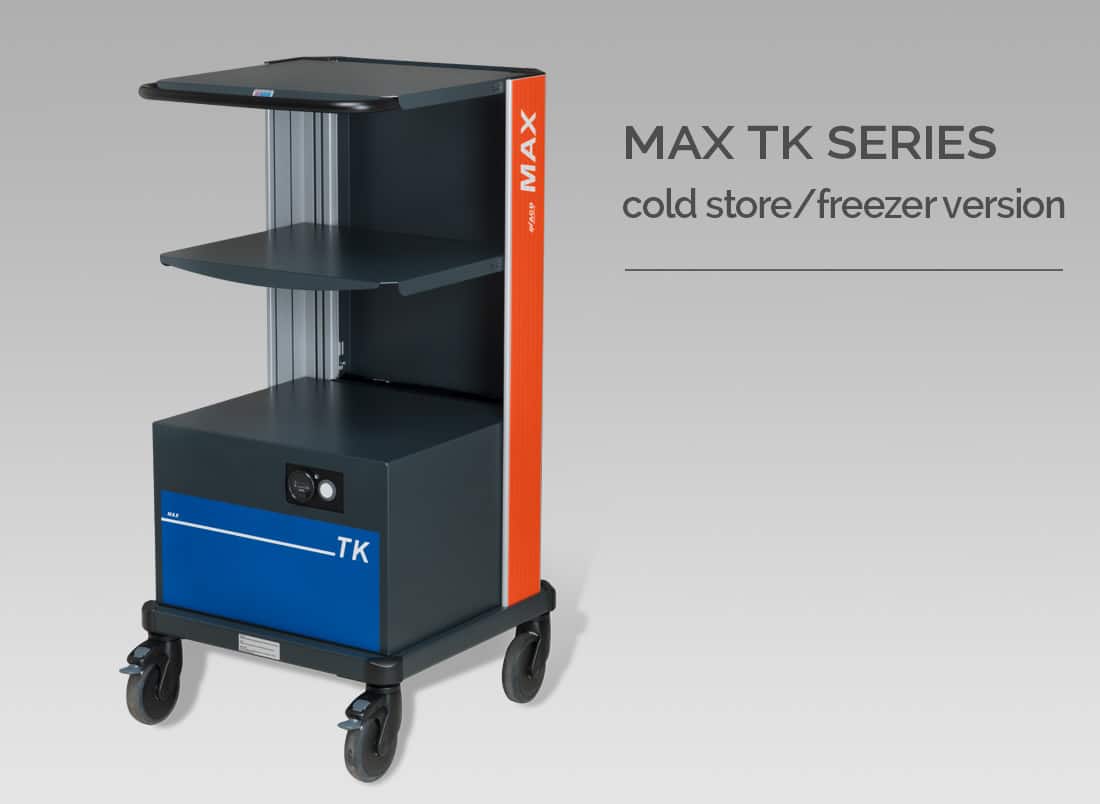

MAX TK series

MAX TK series

< Back to product page

Designed for use with the ACD MFT 10″, 12″ or 15″ vehicle mount terminals, the MAX TK Series operates down to -28°C. Batteries can be recharged** overnight by connecting the charger to a 230Vac power outlet. For electrical safety reasons, all MAX TK models are not equipped with an inverter. “**Outside of the cold store/freezer environment.

Max TK-Series - cold store freezer version. MAX TK BWS-OWR with battery change system; without inverter. MAX TK BWS-R-OWR with battery roll change system for MAX Power Station

Basic Structure:

  • Aluminium base frame with four castors (two with locking brakes)
  • Adjustable work height, standard 1050 mm (DIN 4549)
  • Easy to manoeuvre thanks to ergonomic handle and large castors
  • Very stable due to corner castors and low centre of gravity
  • Dimensions: H1120 x W550 x D580mm
  • Weight – approximately 100kg (without accessories)
  • Operating temperature -28˚C to +40˚C

Configuration:

  • Desk: W500 x D440mm, desk height adjustable
  • Multifunctional rear wall
  • On-board charger, 10 A
  • 2 gel batteries, 12 V/60 Ah (maintenance-free)
  • 24 V DC connector including plug
  • Battery charge indicator displays battery capacity with acoustic and optical warning signal on reaching final discharge voltage with automatic stop (incl. deep discharge protection)
  • Heat insulation
  • Desk: W500 x D440mm, desk height adjustable
  • Multifunctional rear wall
  • On-board charger, 10 A
  • 2x 12 V/60Ah lead acid gel batteries (maintenance-free)
  • 24 V DC connector including connector plug
  • Battery charge indicator displays battery capacity with acoustic and optical warning signal on reaching final discharge voltage with automatic stop (incl. deep discharge protection)
  • Heat insulation

Model configurations available:

  • MAX TK OWR: MAX TK without inverter
  • MAX TK BWS-R-OWR: MAX TK with battery roll change system; without inverter

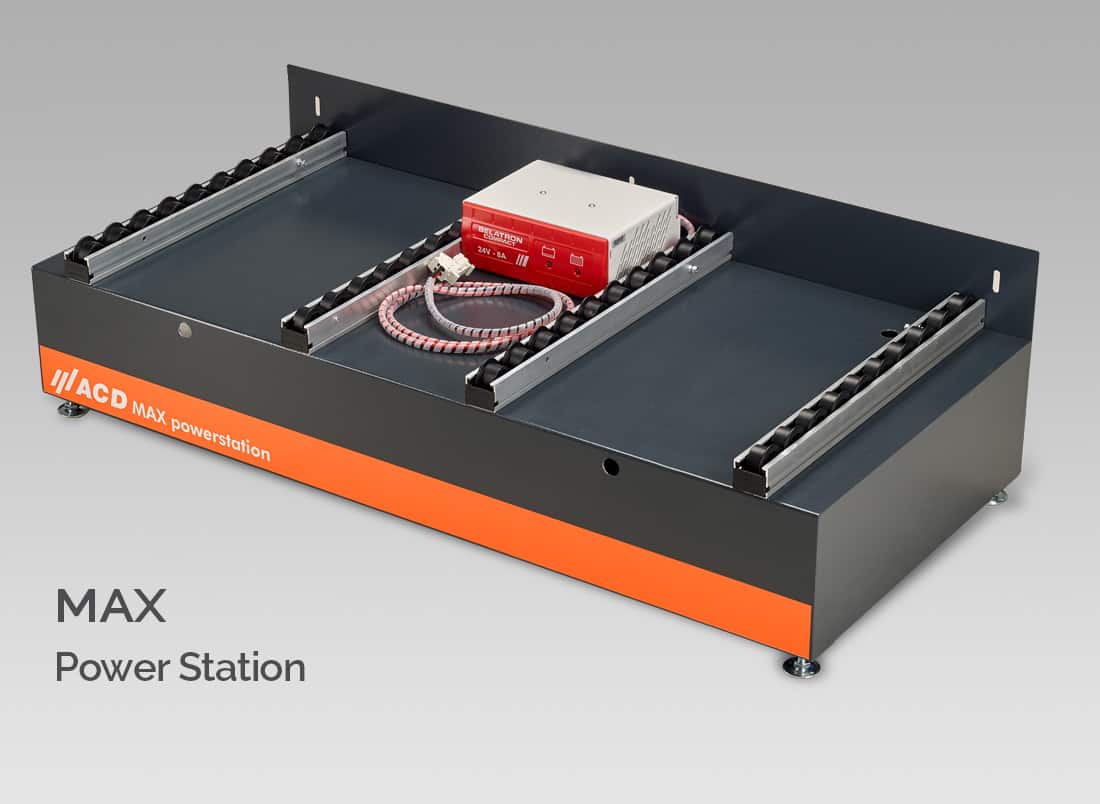

MAX Power Station

Max Power Station

For use with all MAX BWS-R units. Changing and charger station for two batteries with roll system for rapid battery change. Includes:
  • Battery changing unit
  • 24 V/10 A charger
  • 2x 12 V/60 Ah batteries
